Large Casting Foundry China| Investment Casting Foundry|Metal Casting Supplies| Stainless Steel Cast in High Precision| Investment Casting Suppliers

China Professional Lost Wax Casting Manufacturer 304/316 Stainless Steel Casting Suppliers Metal Casting Precision Valve Parts

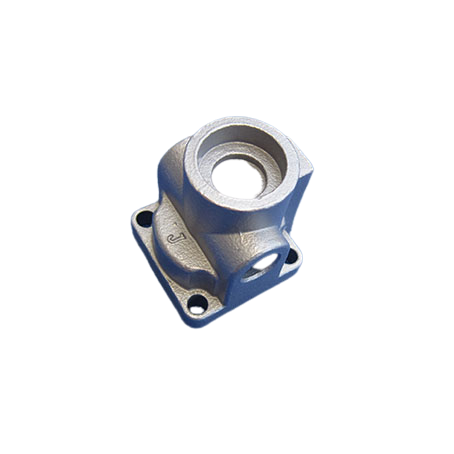

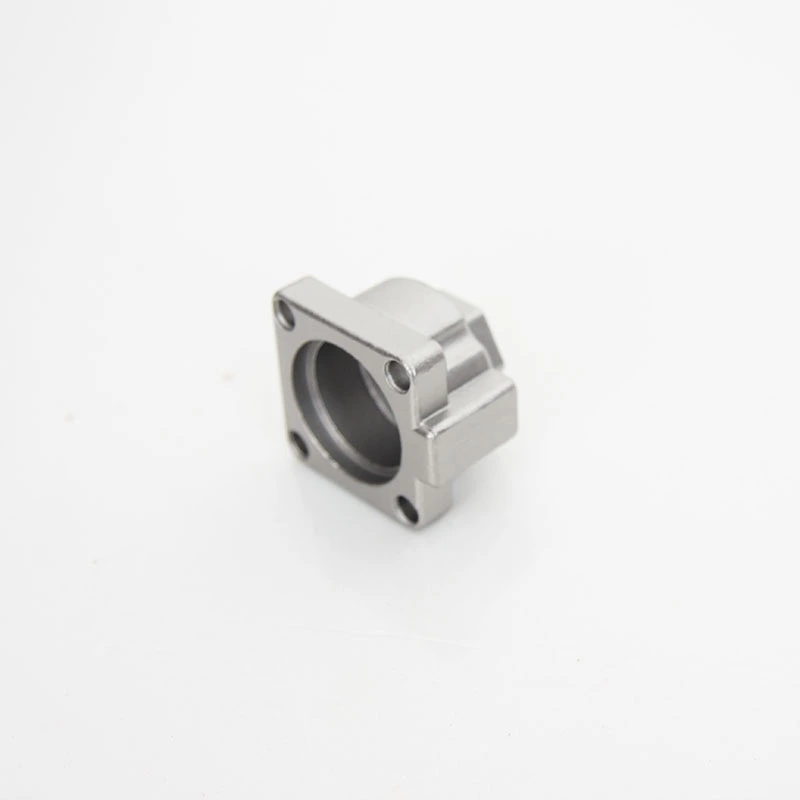

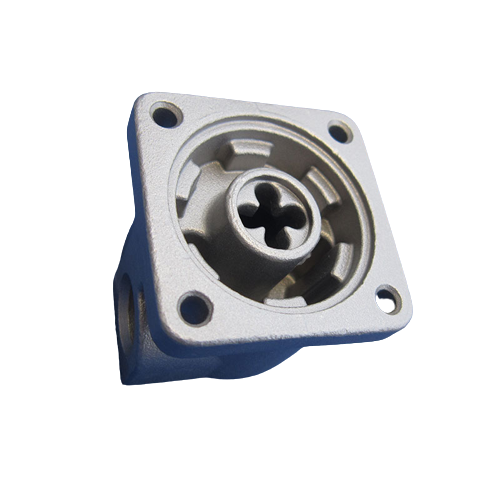

Investment Casting for Pump & Valve Components Applications

In the manufacturing of pumps and valves, lost wax casting process plays an important role as it enables itself readily to produce the very complex shapes of pump and valve components. When valve castings and pump castings are made by Lida steel foundry, the additional advantages of very close tolerances and consistent quality are obtained — important factors if the ever increasing demands of modern industry are to be met. Our range of investment casting materials permits selection of the appropriate grade of metal for each type of service, and thus pump & valve castings from our company offer the perfect combination of economical manufacturing and a high standard of service performance. As a consequence, many im­portant valve and pump manufacturers throughout the world cooperate with us for their casting needs.

Lida utilizes precision casting technology to manufacture a wide range of precision casting parts  for pump & valve application for hydraulic and pneumatic equipment including:

• Impellers
• Covers
• Cap Regulators & End Caps
• Valve Bodies
• Valve Discs
• Coil Housings
• Bonnets

Lida is the top lost wax casting supplier in China with rich experience, we can pour various types of casting materials including stainless steel casting, carbon steel casting and high alloy casting to serve wide range of industries including building hardware. Please contact us at: info@lidalostwaxcasting.com to consult our experts to give you a professional answer to your specific questions for your project.

Versatile Types of Casting Options:

Stainless steel, carbon steel, low alloy steel, medium alloy steel, high manganese steel, nickel base alloy, cobalt base alloy, non-ferrous alloy, etc. Please see the following attachment for details.

Capable of Manufacturing Both Small Parts and Large Parts in Size

Our metal parts can be achieved single weight 0.001-300KG,  minimum size at 5mm*3mm*1.5mm, maximum size 1000mm*1000mm*500mm with weight no more than 300kg.

High Dimensional Accuracy : GB/T6414 or ISO 8062, please see the invesment casting tolerances as below:

High Surface Quality:  Surface Roughness before machining: ≤Ra6.3, ≤Ra3.2 after special processing.

Rapid Manufacturing Capacity: By developing lost wax casting 3D printing technology of shell mold, we can rapid prototype samples within 7 days. This technology eliminates the need for pattern tooling production, speed up casting process design and validation, and reduce overall development time when a hard tool is desired for scalable mass production, and thus provides an advantage for market fast promotion and process trial production.

Vacuum Casting Capacity: With vacuum melting furnace, we can produce nickel based and cobalt based alloy casting parts, product weight range: 0.001-25Kg. Part surface made by vacuum casting is more smooth, no air vent and oxidization, which can meet customer's requirements with higher standards Product surface finish is smooth, no air vent and oxidization, which can meet customer's requirements with higher standards, such as aeropace and petrochemical industries.

Lida is good at manufacturing investment casting parts in complex structures: With the aid of the advanced casting simulation software to facilitate product process design, we can use the melt core, ceramic core, salt core, C-1 sand and other special processes to achieve complex structures to meet customer's higher requirements for challenging projects.

Professional R&D Team Support

​

​We have built a strong engineering team composed of 12 experienced engineers all of whom have more than 8 years in lost wax casting industry. We can offer expertise through entire product development process to part manufacturing end products process.

In the inquiry and quotation stage, the company's business and technical teams communicate closely with customers to understand customer needs and product characteristics, and provide product design and manufacturing feasibility assessment and diversified solutions.

Our engineers participate in product design at the beginning stage and provide feasibility assessment and provide  the most optimal manufacturing solutions at the manufacturing end, in order to improve product manufacturability and save manufacturing costs for customers.

State-of-The-Art Lost Wax Casting Equipment:

1. With automatic wax shooting machine and wax shooting process group control system;
2. With automatic shell making manipulator and drying room temperature and humidity automatic control system; With fast drying technology, shorten the shell drying cycle;
3. Equipped with advanced dewaxing kettle with wax dewatering function; Adopt safe and environmentally friendly automatic wax treatment system;
4. Using self-designed batching computerized system, equipped with subcontract casting mechanical arm, large vibrating shell mechanical arm.
5. Cutting edge testing instruments to ensure our parts in tight tolerance and compliance.

​

​

Top Steel Casting Foundry in China

Lida Investment Casting Foundry is one of the leading stainless steel precision investment casting companies in China. We can manufacture custom steel investment castings that match your exact design specifications with the expertise of our engineering team and cutting-edge QC inspection instruments. For parts ranging from 50g to 300kg, we provide tight tolerances and consistent part to part repeatability.

Production Process of Lost Wax Casting

FAQ

1. What is the difference between sand casting and lost wax casting?

Lida: With lost wax casting process, it can make as more as 1000 types of parts in varieties of materials with smooth surface, tight tolerance, it can also make very small size parts, and suitable for precise or parts with high requirements on surface smoothness.

Sand casting can only make limited materials and it has limitation on material, with poor surface and big size tolerance, hard to make small size parts or accessories.

2. What are Lida Green Energy Technology's part size capabilities?

Lida: Maxium size 1000mm*1000mm*500mm with weight no more than 300kg Minimum size 5mm*3mm*1.5mm

3. Do you have the capabilities for large and/or small production?

Lida: Yes, our max capacity per day can reach 200,000pcs/10,000KGS, and MOQ can be 5pcs

4. Can you handle my unusual alloy requirements?

Lida: Yes, we have High vacuum melting furnace which can handle parts with high alloy over 98%, such as iron based, cobalt based,nickel based alloy and brass based alloy

5. Can you produce intricate part shapes?

Lida: Yes, we can make intricate part shapes as we have Water soluble wax core and collapsible sand core which can help us make lost wax casting parts in complicated shapes

6. What are your precision casting tolerances?

Lida: We follow strictly the ISO8062 Tolerance Standards, details please click: https://www.lidalostwaxcasting.com/technical-resources/casting-tolerance/

7. What's your normal lead time for sample mold and production mold?

Lida: Our normal leadtime is: 7-10 days for sample and 30 days for production mold.

8. What if I have a "problem part"? Can Lida Green Energy Technology meet my needs?

Lida: Yes, we can provide solutions for many challenging, "problem" parts. In fact, Lost wax castings is often the only answer to casting difficult parts economically. Let us know what your challenge is, and we'll help you find the right solution.
